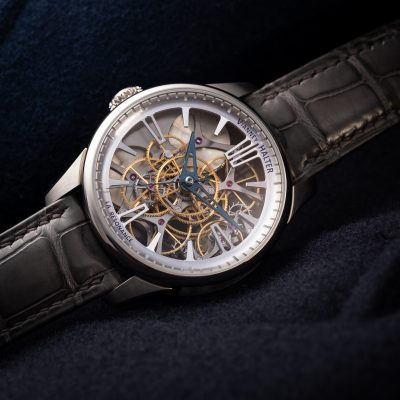

LA RESONANCE
LA RESONANCE
A recollection of a galactic journey
Limited production of 3 pieces maximum per year
Name: La Resonance
Type: Hour, minute, second, acoustic resonance
Case material: Titanium
Case size : 39 mm diameter
Overall dimensions: 48.5 mm with lugs / 11 mm thickness
Crystal: 35.6 mm diameter sapphire glass with anti-reflect coating on both faces + the window at 3 o‘clock

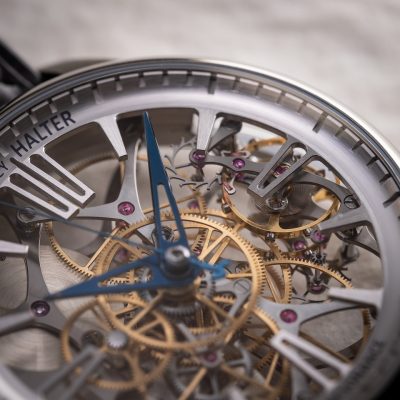

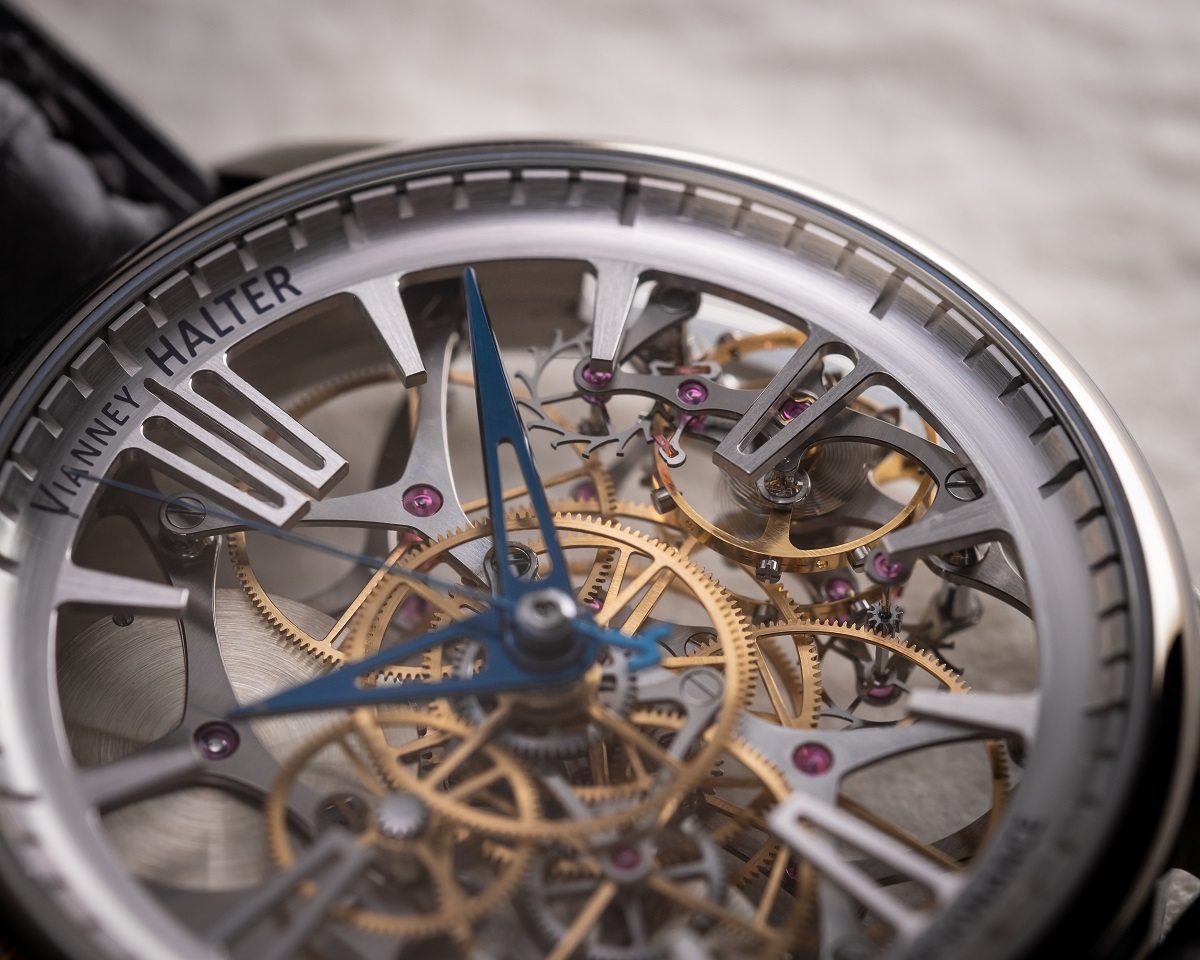

Dial: skeleton titanium ring
Movement: In-house developed VH 222
Balances frequencies: 3 Hz (21,600 v.p.h.)
Nr of components: 320 (63 screws)
Nr of wheels: 11
Nr of bridges: 13 (titanium)
Nr of pillars: 30
Nr of jewels: 52
Differential (nr of components): 55
Anglage (beveling): 3.7 meters
Winding: manual
Power Reserve: 100 hours
Total weight: 35 gr. (titanium model), excluding strap and buckle

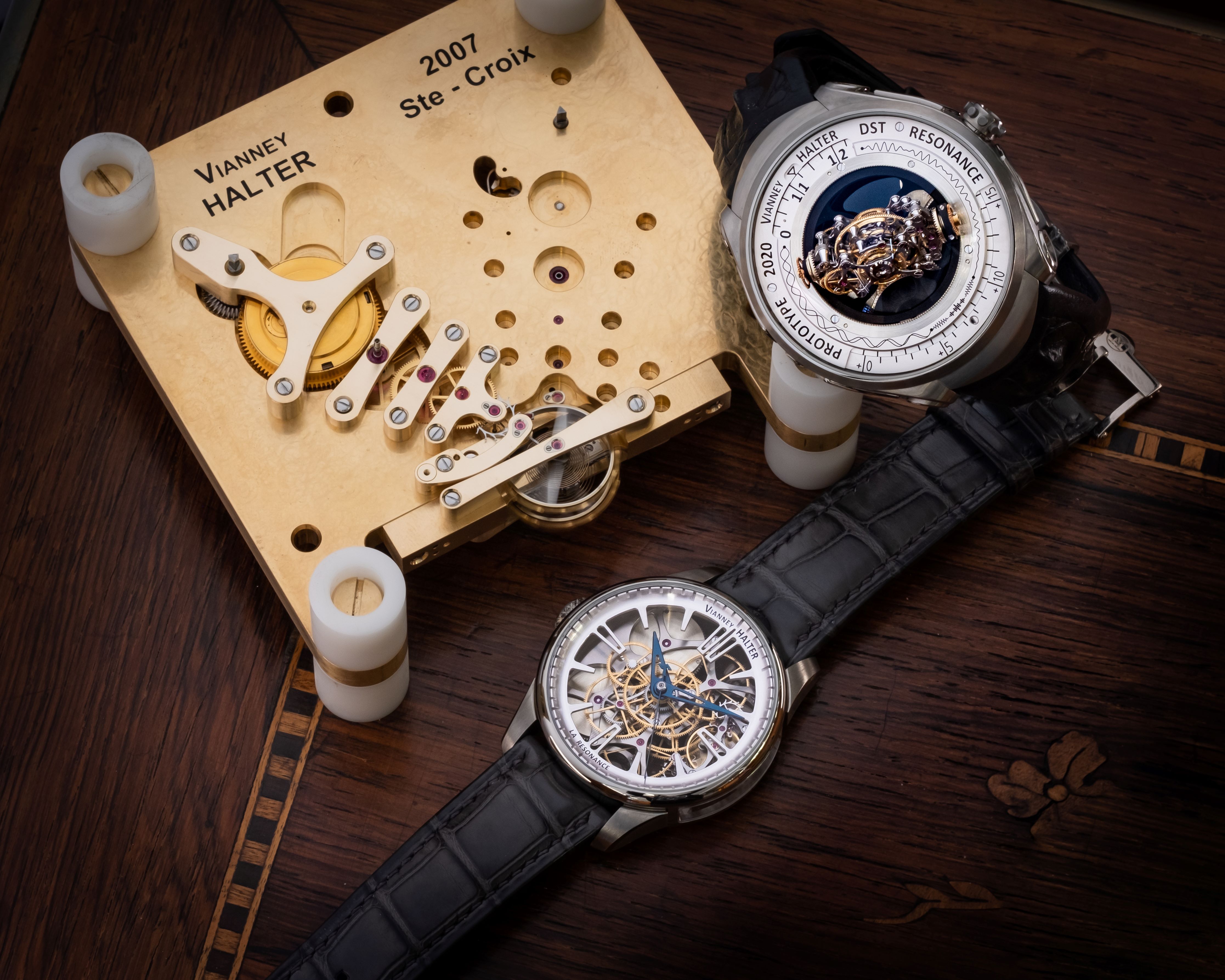

This new piece results from a sequence of adventures through time and space. Vianney Halter worked many years on the acoustic resonance to express this phenomenon through the mechanics of watchmaking. Developing first the Deep Space Tourbillon and then the Deep Space Resonance was a crutial preliminary work that led to the conception of La Resonance.
In this new caliber, there is no more mainplate. The bridges, pillars and large wheels take you to a new universe, where the genuine acoustic resonance phenomenon is highlighted. La Resonance is a 3 hands, 35 grams light, round watch, regulated by two oscillators coupled by acoustic resonance.

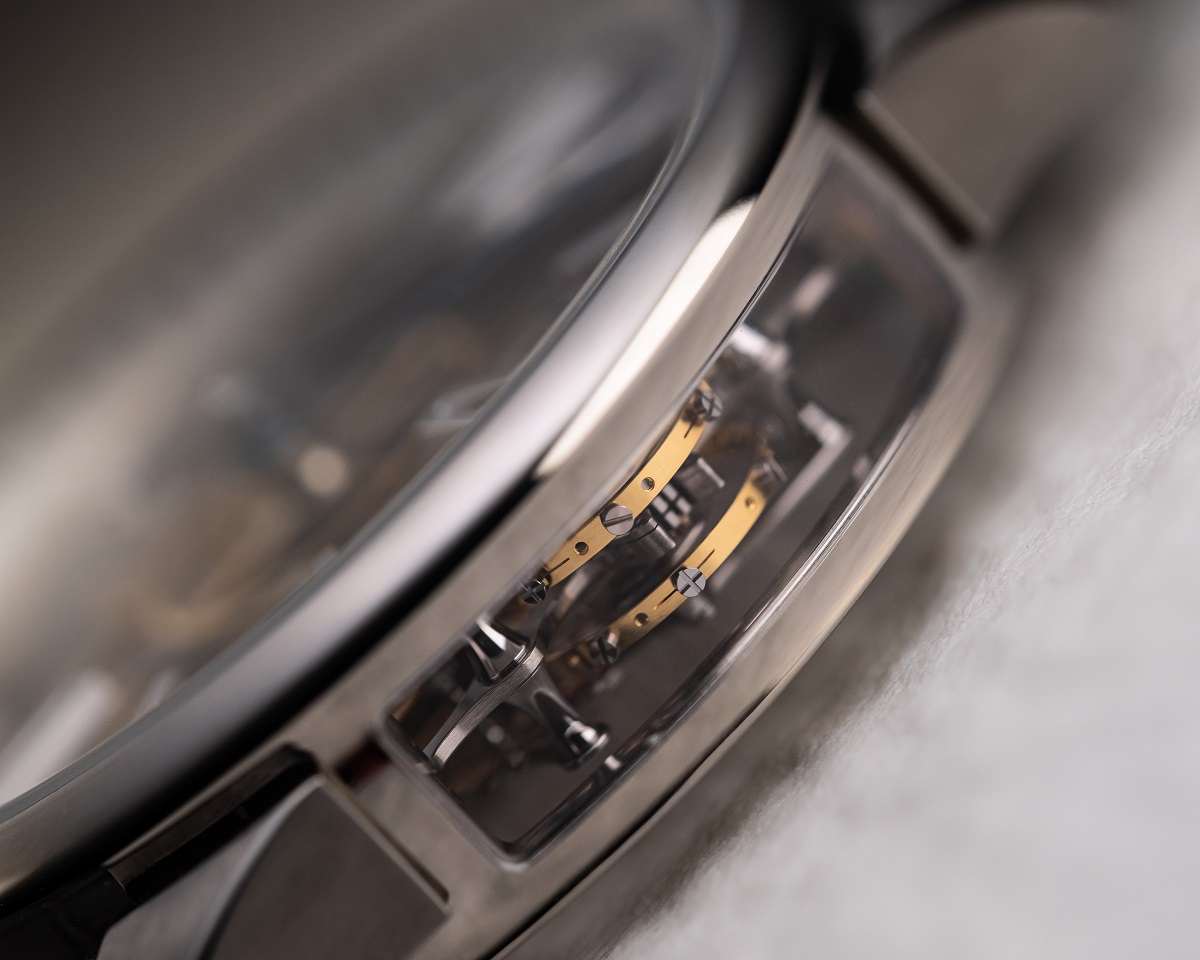

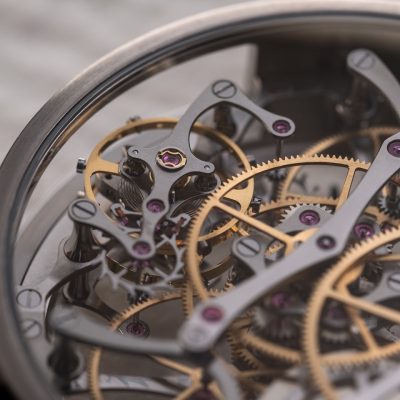

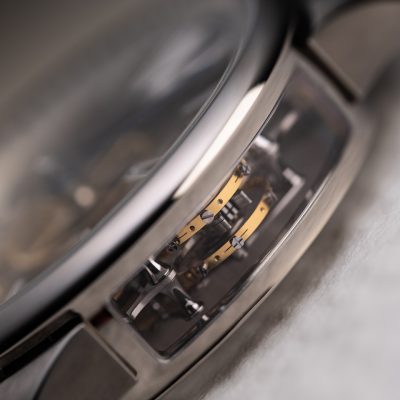

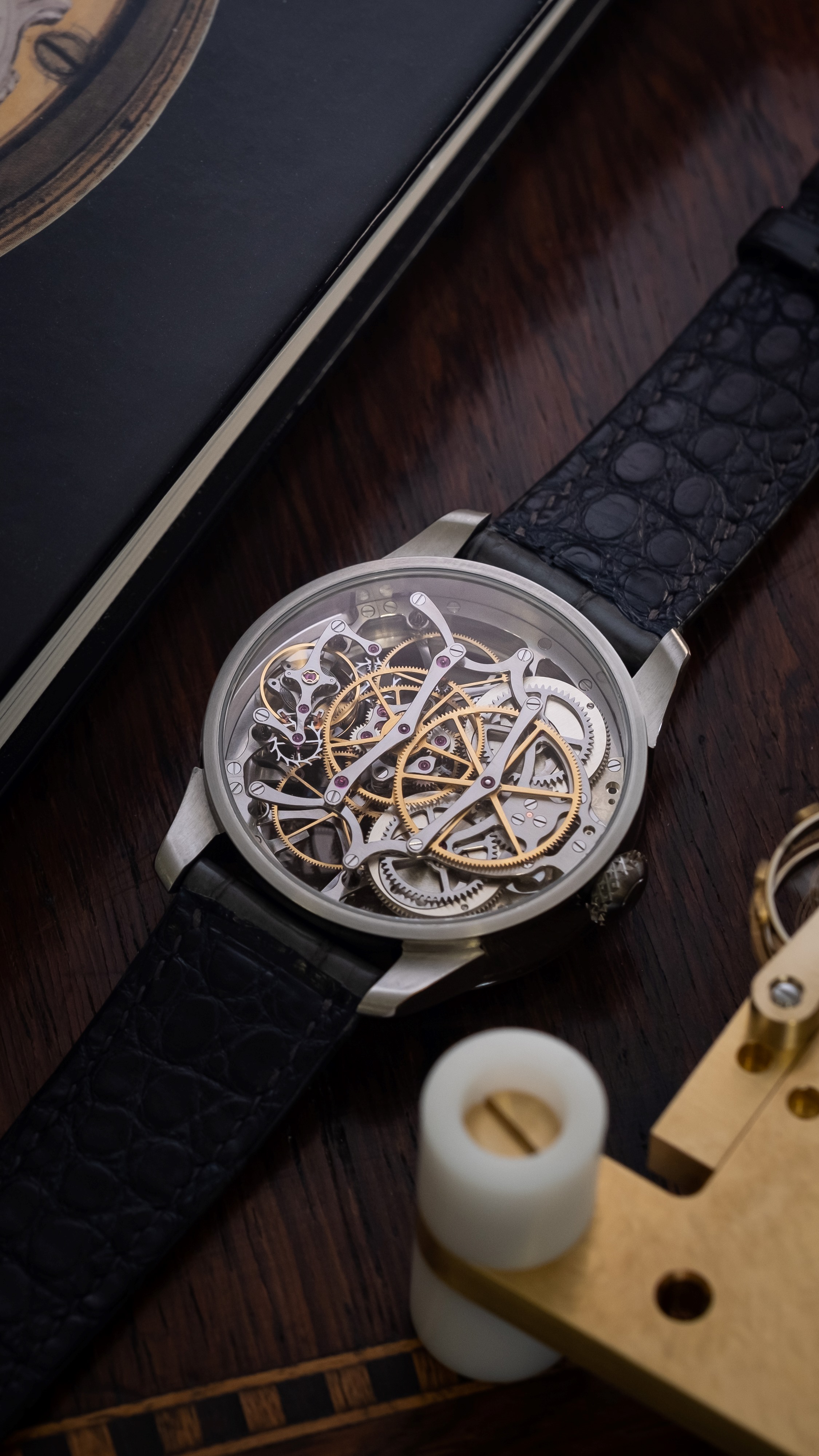

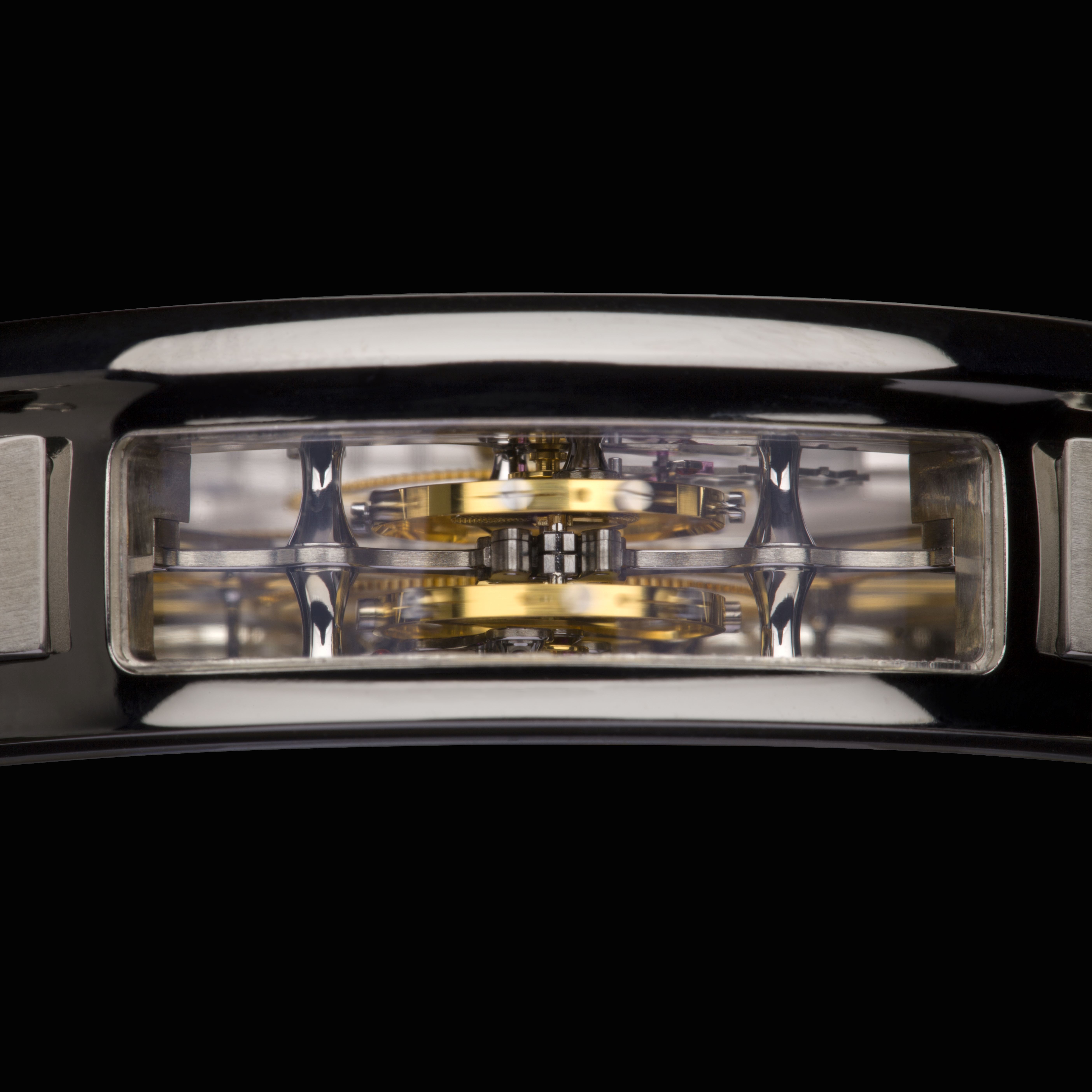

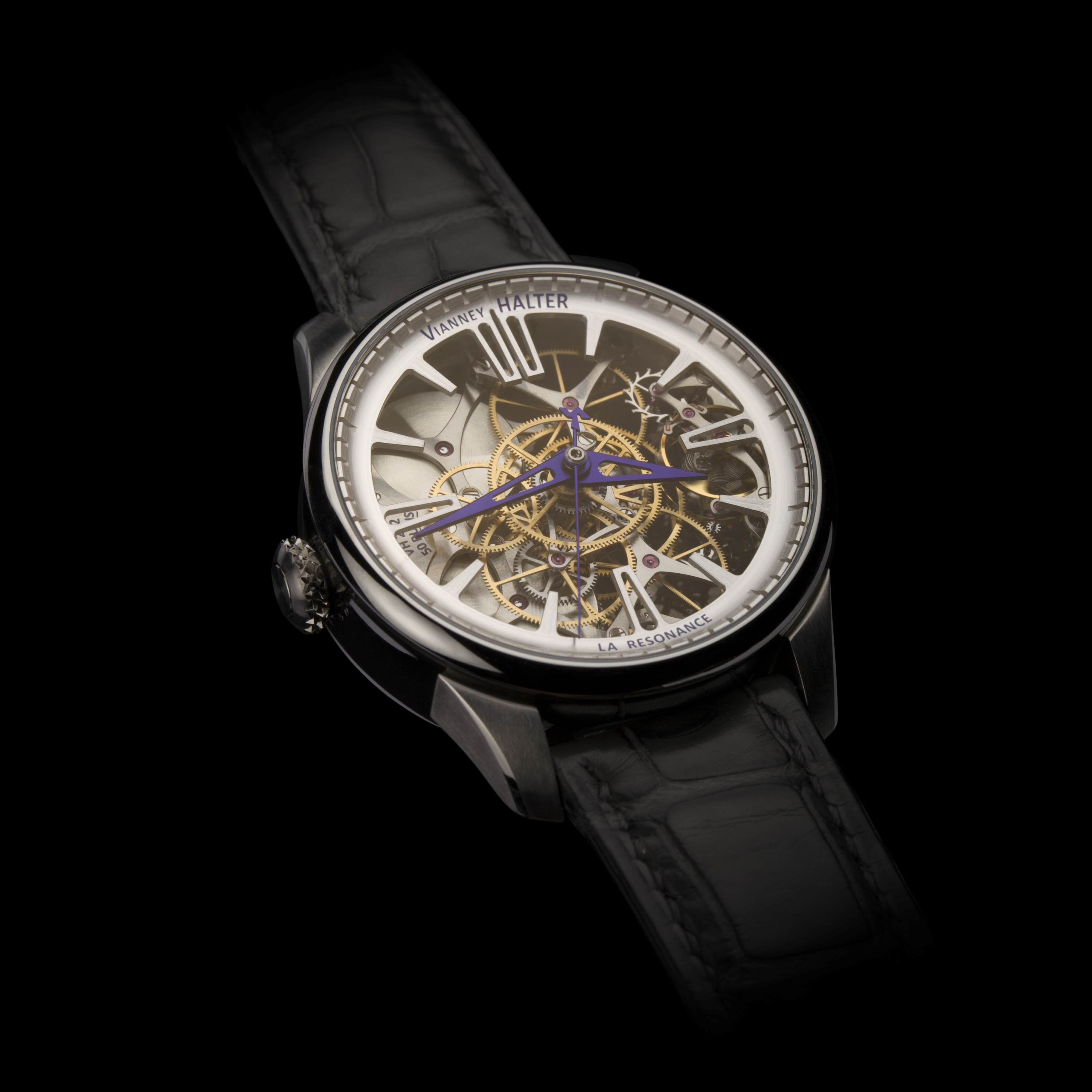

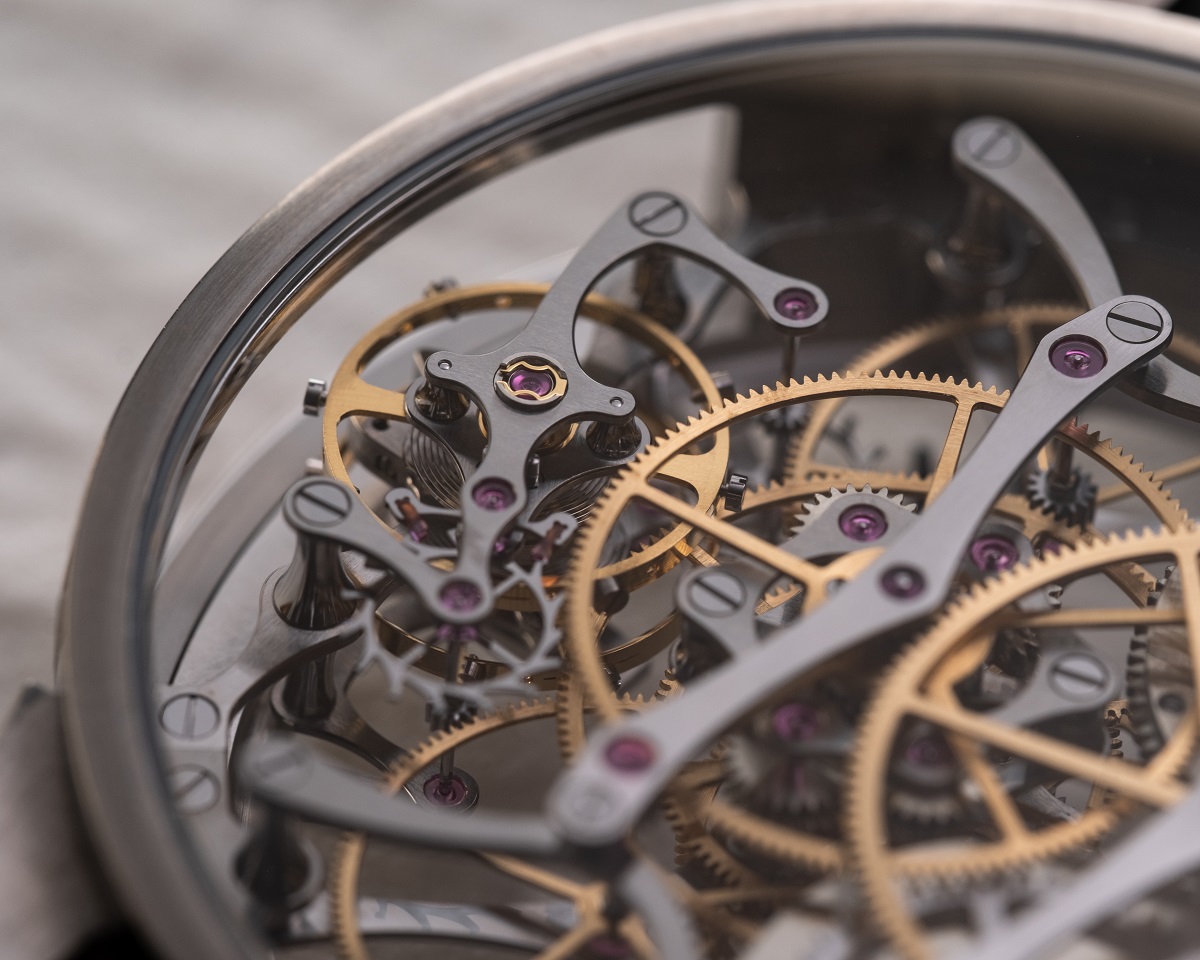

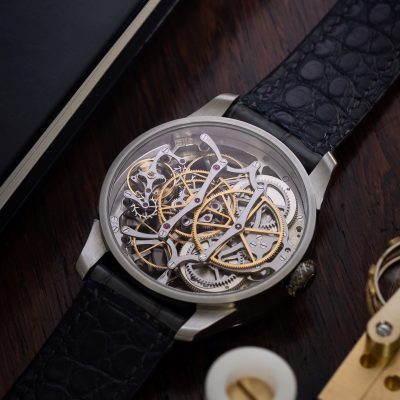

The titanium 39mm case and 11mm thick is constructed of a unibody ring set with four separate lugs. It is enclosed with 3 curved sapphire windows to ensure a 3D view of the in-house developed VH222 caliber. The crown is unconventionally placed at 9h to offer a better sight on the technical architecture on the 3h side where the 3hz frequencies oscillators are located. This 100 hour power reserve movement is composed of 320 hand finished parts, including 13 titanium bridges and 11 large wheels. Their cumulated hand polished beveled length is 3.7
meters. The 30 concave mirror-polished pillars hold the light structure which is fitted with 52 jewels. The manualwound twin barrels converging in the differential allow the individual feeding of the coupled resonating balance wheels. Last but not least, the two oscillators are mounted in a modular porte-escapement unit.
La Resonance in motion
